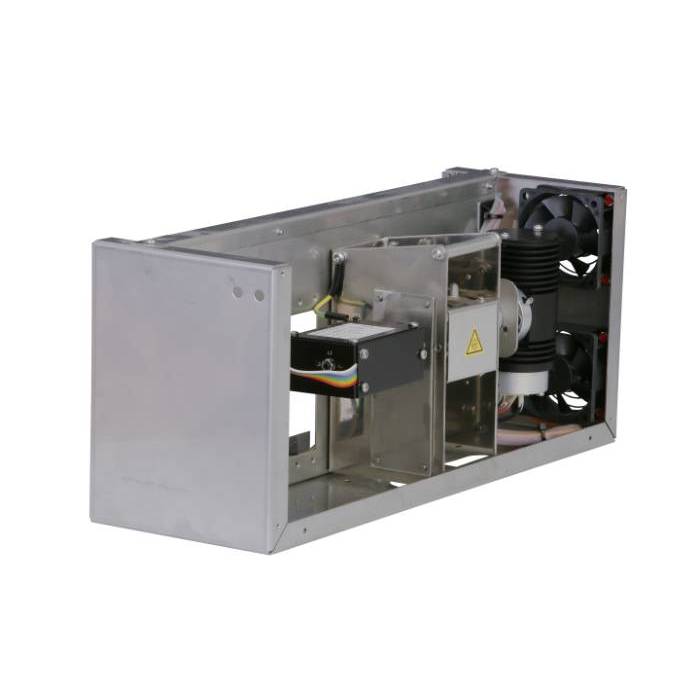

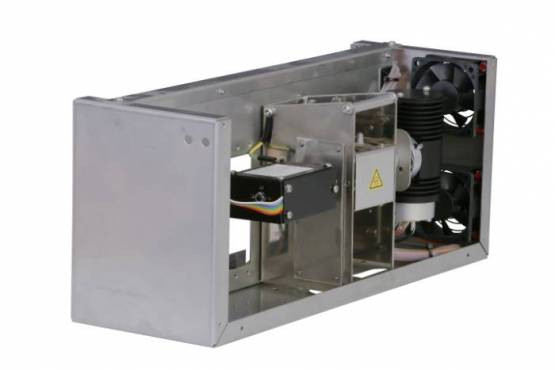

TOYDAD 800 Scanning UV Detector
200 - 800 nm Four Channel PDA detector measures at four wavelengths simultaneously with possibility to see current scan.
- Description
- Parameters
- Files to download 1
OEM built-in UV diode array (PDA / DAD) detector suited for preparative and flash chromatography. More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.
Most important features of TOYDAD L detectors:
• small dimensions
• built-in lamp working hours counter
• easy replacement of flow cell
• measuring at more wavelengths simultaneously
• sophisticated diagnostic software
| Number of channels (Signals) | 4 |
|---|---|
| Scan | 200 - 800 nm, 5 Hz, step 3 nm |
| Number of CCD elements | 128 |
| Communication | RS232 |
| Accuracy of adjustment | ± 1 nm |
| Typical spectral half-width | 8 nm |
| Reproducibility | ± 0.5 nm |
| Light source | Deuterium and halogen lamp |
| Noise (Test cell, 254nm, TC 2s, 10 Hz) | ± 5 x 10-5 AU |
| Drift (Test cell, 254nm) | 1 x 10-3 AU/hr |
| Time constant | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
| Wetted materials | FEP; fused silica, stainless steel |
| Communication | RS232 |
| Power supply | 24 – 36 V DC |
| Power input | 48 W |
| Optical cables | no |
| Dimensions W x H x D | 131 x 167 x 386 mm (5.15 x 6.57 x 15.20 in) |
| Weight | 3.20 kg (7.06 lb) |
| Filename | Type |
|---|---|
| Info-TOYDAD800_detector-en.pdf | pdf (166,97 KB) |
