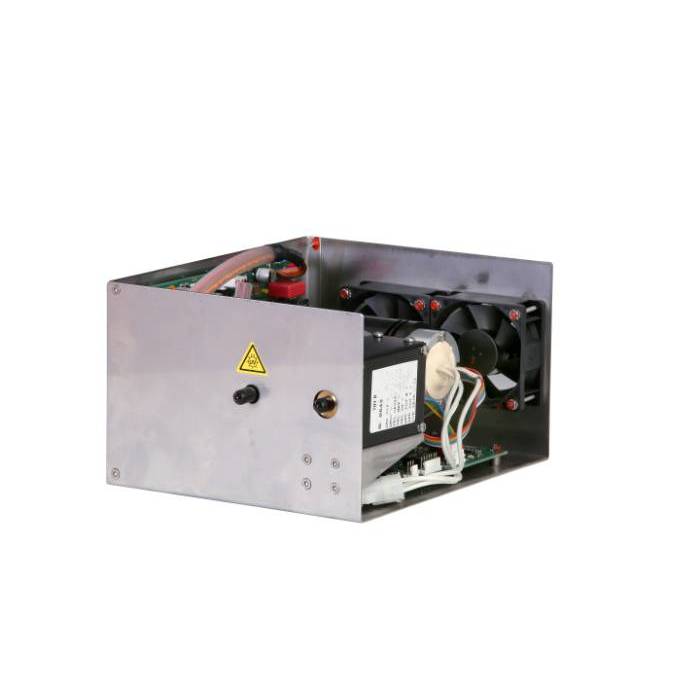

TOYDAD800 EX Four Channel Detector
4 channel
200-800
Is OEM built-in UV-VIS diode array (DAD) detector working in range 200 – 600 nm. It measures absorbance at four wavelengths simultaneously. SMA 905 connectors allow to use external cell connected with optical cables. It is suited for preparative and flash chromatography.
Categories
Manufacturer
ECOM spol. s r.o.
Part number
TOY32WEX
- Description
- Files to download 1
More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.
Most important features of TOYDAD EX units:
- small dimensions
- built-in lamp working hours counter
- cell connection using optical cables
- measuring at more wavelengths simultaneously
- sophisticated diagnostic software
Specifikation
TECHNICAL PARAMETERS:
| Wavelength range | 200 - 800 nm |
| Elements on CCD | 256 |
| Number of channels (Signals) | 4 |
| Scan |
Informative
200 – 800 nm
|
| Typical spectral half-width | 10 nm |
| Accuracy of adjustment / Reproducibility | ± 1 nm /±0.5 nm |
| Noise level at test cell (254 nm, TC 0.75s) | ± 5 x 10-5 AU |
| Drift at test cell (254 nm after 1 h) | 1 x 10-3 AU/hr |
| Materials in contact with mobile phase | PTFE; fused silica, stainless steel |
| Time constant (T63) | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
| Interface | RS232 |
| Power supply | 24 -36 V DC |
| Power input | 48 W |
| Dimensions (W x H x D) | 164 x 112 x 197 mm (6.46 x 4.41 x 7.76 in) |
| Weight | 2,0 kg (4.4 lb) |
EXTERNAL CELLS AND UV RESISTANT OPTICAL CABLES FROM ECOM ASSORTMENT ARE OFFERED ACCORDING CUSTOMER NEEDS.
| Filename | Type |
|---|---|
| Info-TOYDAD800_EX_detector-en.pdf | pdf (193,43 KB) |
