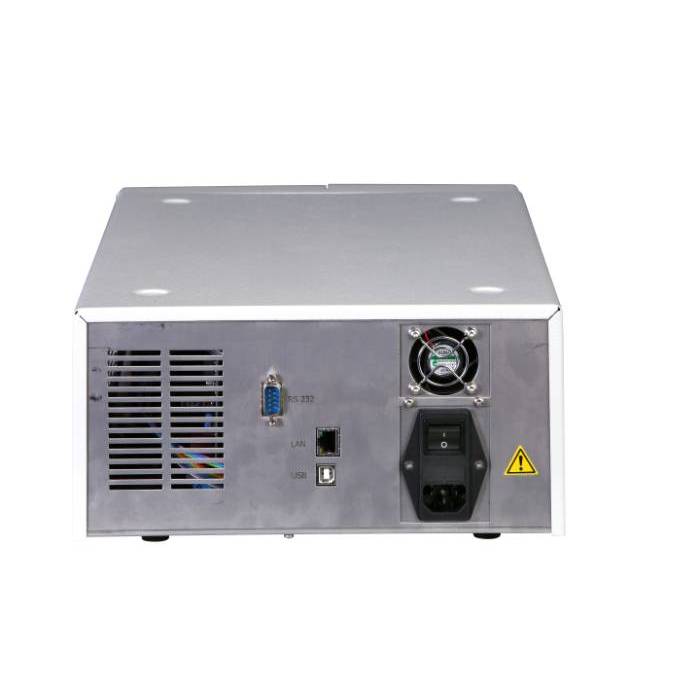

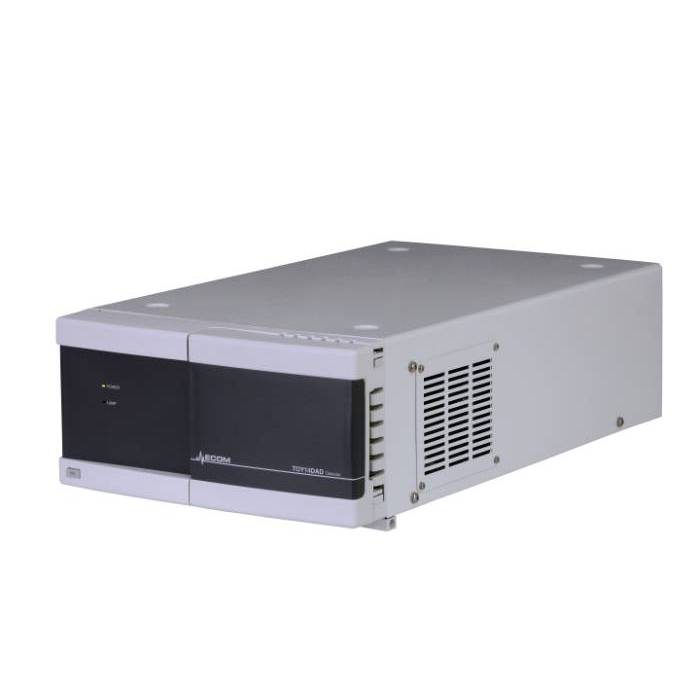

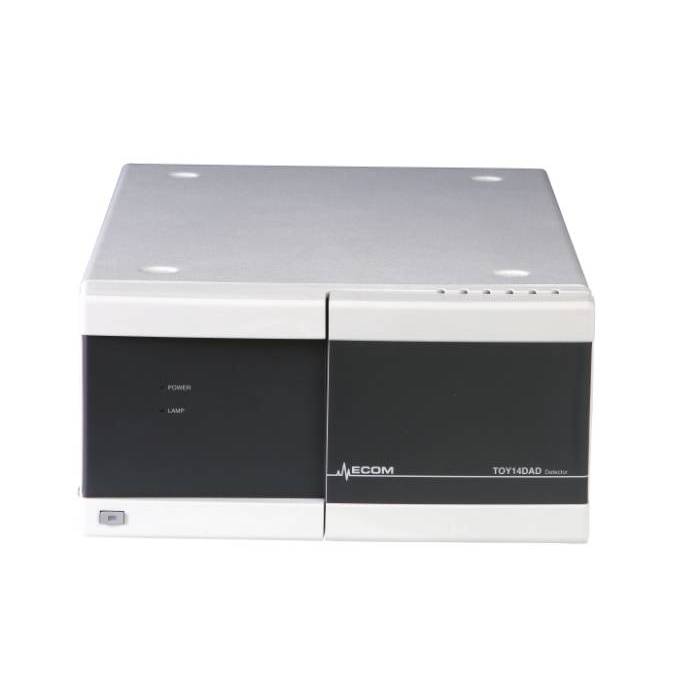

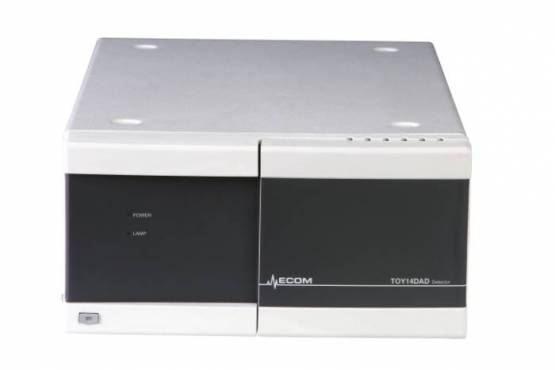

TOY14DAD 800 Four Channel UV Detector
is a standalone UV detector suited for preparative and flash chromatography with diode array (DAD) in range 200 – 800 nm.
- Description
- Parameters
- Files to download 1
It is offered in the following versions:
Two Channel version measures at two wavelengths simultaneously with possibility to see current scan.
Four Channel version measures at four wavelengths simultaneously with possibility to see current scan.
Scanning version measures at four wavelengths simultaneously or sends scan with speed 5 Hz which allows to create 3D picture.
More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.
Most important features of TOY14DADdetectors:
• built-in lamp working hours counter
• easy replacement of flow cell
• measuring at more wavelengths simultaneously
• sophisticated diagnostic software
| Scan | Informative 200 – 800 nm |
|---|---|
| Number of CCD elements | 256 |
| Communication | Ethernet (LAN) |
| USB | |
| Accuracy of adjustment | ± 1 nm |
| Typical spectral half-width | 10 nm |
| Reproducibility | ± 0.5 nm |
| Noise (Test cell, 254nm, TC 2s, 10 Hz) | ± 5 x 10-5 AU |
| Drift (Test cell, 254nm) | 1 x 10-3 AU/hr |
| Time constant | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
| Communication | Ethernet (LAN),USB |
| Power supply | 100-240V |
| Power input | 90 VA |
| Optical cables | no |
| Dimensions W x H x D | 280 x 130 x 463 mm (11.02 x 5.12 x 18.23 in) |
| Weight | 7.5 kg (16.53 lb) |
| Filename | Type |
|---|---|
| Info-TOY14DAD800_detector-en.pdf | pdf (160,3 KB) |
