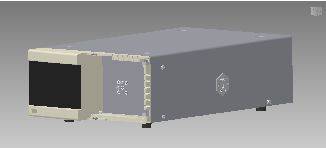

SpiderC46 Fraction collector and injector SpiderC46 Fraction collector and injector
SPIDER allows automation of flash and preparative applications. It can be controlled using PC program
- Description
- Parameters
- Files to download 1
An input four-way solenoid valve is connected before pump. Solvents go to the pump through valve B or C. For sample injection is the valve A switched on for a programmed time. The valve D is used for column washing.
- control by means of time table
- control based on peak detection at chosen signal
- manually
SPIDER main features:
- Unit simplicity
- Easy programming of fraction collection
- Possibility to connect electronically controlled valve for a flow reversion when column is washed
- Manual valves control from PC by method development
| Communication | RS232,Ethernet (LAN),USB |
|---|---|
| Thread for tubing connection | 1/4“-28 |
| Connection tubing OD | 1/8“ |
| Mixing valves | 1x 4 ways input 1x 6 ways output |
| Maximum operating pressure | 1.3 bar (0.13 MPa, 20 psi) |
| Maximal flow rate | 100 ml/min Input 300ml/min Output |
| Number of switched output contacts | 2 |
| Maximal voltage at switched contacts | 35 V |
| Maximal current at switched contacts | 50 mA |
| Power supply | 100-240V 50/60Hz |
| Power consumption | 20 VA |
| Dimensions W x H x D | 280 x 135 x 498 mm |
| Weight | 3 kg |
| Filename | Type |
|---|---|
| Info-SpiderC46_fraction_collector-en.pdf | pdf (378,58 KB) |
