Single-Plunger Preparative Pump LCP 4010.2
0,1 - 20 ml pulsating, without pressure measuring
- Description
- Parameters

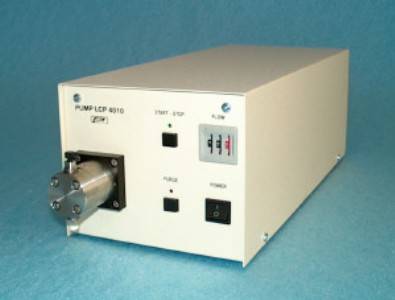

LCP 4010.2 PUMP
is a simple preparative pump with one pumping block, which is equipped with a pair of suction and discharge valves. The flow of liquid is provided by an appropriate shape of driving cam, which provide a uniform movement of working piston.
- Flowrate is adjustable in range 0,1 - 20 ml/min
- Maximal working pressure is 15 MPa
- Check valves in PEEK housing are easy care
- After using buffered mobile phases is possible to use back-flushing of pistons
| Flow rate | 0.1 – 19.9 ml/min |
|---|---|
| Maximum operating pressure | 15 MPa |
| Power supply | 230 V ± 10% , 50 Hz (115 V, 50 Hz) |
| Power input | 40 VA |
| Dimensions W x H x D | 180 x 150 x 420 mm |
| Weight | 7,5 kg |
| Material of pump heads | stainless steel |
| Method of setting | in steps of 0.1 ml/min |
| Accuracy of selected flow | ± 2% |
