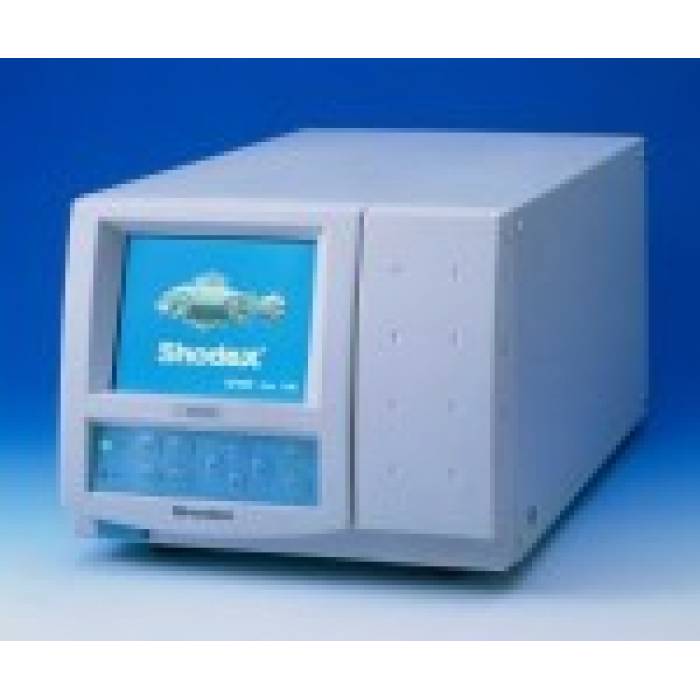

Refractive Index Detector Shodex RI-101 analytical
Analytical version up to flow rate 5 ml/min.
- Description
- Parameters
Differential Refractive Index Detectors are used for detecting little or no UV active samples such as sugars or polymers. The Shodex RI-101, employs a number of improvements for shortening the time for stabilization. By using a micro-processor it is capable of automatic start-up from eluent replacement to checking the base-line stabilization. The detector is fitted with external input and output terminals as well as RS232C communication ports, permitting advanced automation by linking the detector with various HPLC systems, enabling advanced automation by combining the detector with various chromatographs.Differential Refractive Index Detectors are used for detecting little or no UV active samples such as sugars or polymers. The Shodex RI-101, employs a number of improvements for shortening the time for stabilization. By using a micro-processor it is capable of automatic start-up from eluent replacement to checking the base-line stabilization. The detector is fitted with external input and output terminals as well as RS232C communication ports, permitting advanced automation by linking the detector with various HPLC systems, enabling advanced automation by combining the detector with various chromatographs.
Main features:
- superior base line stability
- intuitive operating using
- easily overview of operational conditions and baseline trend
- automatic start-up function for reference cell filling and baseline stabilization checking
- HELP function for easy validation and calibration
- control mode ( by keypad, or RS232)
- optimized temperature control method guarantee quick base line stabilization
- leak sensor stop the pump by solvent leakage
- various automated function
We also offer preparative (RI-102) and semipreparative (RI-104) version of this detector - see download files box.
| Noise Level | 2.5nRIU (response 1.5 sec) |
|---|---|
| Auto zero resolution | < 1 (@ 8mV/u RIU) /4 (@ 2mV/uRIU) n RIU |
| Refractive Index Range | 1/4 – 512 μRIU |
| Adjusted temperature | OFF, 30-50°C(1°C increment ), 77°C Temp. Fuse |
| Signal output | 0 – 1V |
| Dead Volume | Total: ca.670 uL |
| Solvent contact parts | SS 316, Teflon, Quartz glass |
| Cell volume | 8 μl |
| Ordinary flow rate | 0,2 to 3 mL/min |
| Maximal flow rate | 10 ml/min |
| Linearity Range | 600 μRIU |
| Power supply | 100-230 V ± 10% , 50, 60 Hz |
| Power input | 150 VA |
| Dimensions W x H x D | 260 x 400 x 200 mm |
| Weight | 13 kg |
