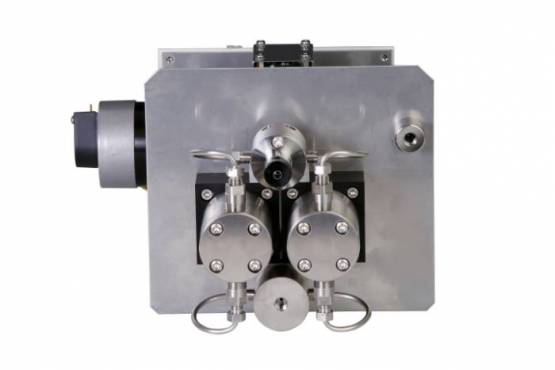

IOTA300 Preparative Pump
OEM built-in pump with flow rate up to 300 ml/min.
Related variants
- Description
- Parameters
- Files to download 3
Iota 300 has a flow rate range from 0.1 to 300 ml/min. Maximum operating pressure is 7.5 MPa (1015 PSI).
It has two pistons connected in parallel, with a diameter of 3/8”. It is suited for preparative and flash applications in liquid chromatography, but also for solvent pressurizing by sample extractions, etc. Beneficiary is also a very stable run even at low flow rates.
This pump is designed as an OEM / built-in unit.
There is a possibility of using this pump even at high-pressure gradient mode, where two, three, or four units can be controlled from a PC using RS232.
The control board is mounted on the unit's back side therefore the installation is easy. Only connect the power voltage and RS232 and the pump is ready to work.
When working with buffered solvents, it is possible to use pistons backwashing.
The pump is supported by the software ECOMAC and Clarity.
IOTA PUMPS are equipped with pressure sensors.
| Flow rate | 0.1 – 300 ml/min |
|---|---|
| Maximum operating pressure | 7.5 MPa (1015 PSI) |
| Flow rate setting | 1 ml/min steps |
| Repeatability of flow rate adjusting | ± 1 % |
| Accuracy of flow rate setting | ± 2 % |
| Wetted materials | stainless steel, PEEK, ceramic, seals |
| Communication | RS232 |
| Power supply | 24 – 36 V DC |
| Power input | 150 W |
| Dimensions W x H x D | 212 x 153 x 338 mm |
| Weight | 8 kg |
| Output capillary outer diameter | 1/8” |
| Upper pressure limit (MPa) | 0.1 – 7.5 (1015 PSI) |
| Filename | Type |
|---|---|
| Info-Iota50_100_300_pump-en-03.pdf | pdf (170,24 KB) |
| Info-Iota50_100_300_pump-cz-03.pdf | pdf (171,67 KB) |
| Info-Piston_Seal_Materials-en-01.pdf | pdf (134,34 KB) |
Related products
Piston seal 3/8" U-R325 HB (CC)-204-GFP-HST
For pump types ECP2050/2200/2300, Theta and Iota.
Piston seal 3/8" U-325 MB-204-T-316
For pump types ECP2050/2200/2300, Theta and Iota.
