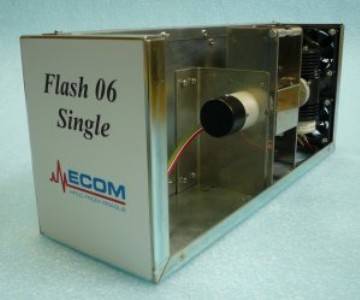

Flash 06 Single Detector
One fix wavelength given by chosen interference filter in range 200-600 mn
- Description
- Parameters
FLASH 06 SINGLE is an OEM build-in detector with an interference filter. Detector can be adjusted using interference filter at one fixed wavelength in range of 200–600 nm. Noise level at 254 nm is ± 2 x 10 -5 AU with a test cell. (Filter 254 nm include price, other filters on request) High standard deuterium lamp in a special socket enables easy changing. This unit is used in liquid chromatography in flash and preparative applications. By using analytical cell can be detector used also for analytical purpose.
The unit is designed as build in unit with 24-36V power supply and RS232 controlling. On request can be sold in classical case with 90-264 V powering.
The unit offers many advantages:
- wavelength setting from 200 up to 600 nm according used interference filter
- lamp work hours are counted using the built-in counter
- the cell is easy to replace from the side of the detector
- powering by 24-36V
- unit is controlled by RS232 interface
| volume/optical path(adjustable) | 45 µl / 0.3 mm (basic) 55 µl / 1.4 mm 70 µl / 2.4 mm |
| connecting | tubing with OD = 1/8", thread 1/4"-28 |
| maximal flow rate | 500 ml/min |
| Typical spectral half-width | According used interference filter |
|---|---|
| Light source | Deuterium discharge lamp |
| Noise (Test cell, 254nm, TC 2s, 10 Hz) | ± 2 x 10-5 AU |
| Drift (Test cell, 254nm) | 1 x 10-3 AU/hr |
| Output for integrator | 1 V/AU (in digital form only) |
| Time constant (T90) | 0 s; 0.3 s; 0.6 s; 1.5 s |
| Communication | RS232 |
| Power supply | 24-36 V DC |
| Power input | 48 W |
| Materials in contact with mobile phase | PTFE; fused silica, stainless steel |
| Dimensions W x H x D | 131 x 167 x 386 mm |
| Weight | 3.5 kg |
