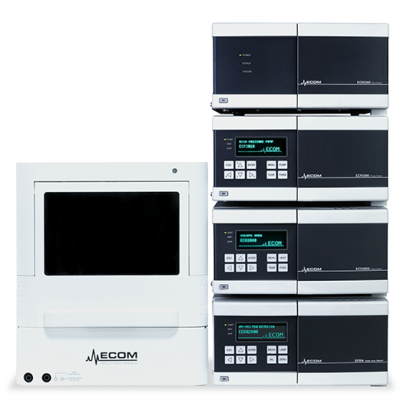

ECS07 Gradient Analytical System
| Image | PN | Product Name | Maximum Pressure | Detector | Request quote |
|---|---|---|---|---|---|
|
|
PN
ASA07C0X
|
Product Name
Gradient analytical system (incl. autosampler with cooling and heating, UV-VIS PDA detector)
|
Maximum Pressure
60 MPa (8702 psi)
|
Detector
UV-VIS PDA
|
Actions
|
|
|
PN
ASA0700X
|
Product Name
Gradient analytical system (incl.autosampler without cooling and heating, UV-VIS PDA detector)
|
Maximum Pressure
60 MPa (8702 psi)
|
Detector
UV-VIS PDA
|
Actions
|
|
|
PN
ASA07XXX
|
Product Name
Gradient analytical system (incl.autosampler with cooling and heating, UV-VIS detector)
|
Maximum Pressure
60 MPa (8702 psi)
|
Detector
UV-VIS
|
Actions
|
|
|
PN
ASA07XXX
|
Product Name
Gradient analytical system (incl.autosampler without cooling and heating, UV-VIS detector)
|
Maximum Pressure
60 MPa (8702 psi)
|
Detector
UV-VIS
|
Actions
|
- Description
- Files to download 1
The UV-VIS PDA detector has eight channels in the range of 200-800 nm and very low noise levels, and it also offers high-speed scanning up to 100 Hz. The units are communicated through RS232 or Ethernet (LAN). A UV-VIS detector is also an option.
The units are communicated through RS232 or Ethernet (LAN).
An additional PC A/D converter card is not required for this system. The system contains an autosampler and Clarity software. All units are supported in Clarity software from installation.
A wireless mouse and keyboard set (P/N: EPC-0028), a PC (P/N: EPC-0026), and a computer monitor (P/N: EPC-0027) can be purchased with the system.
Main parts
Detector with a continuously variable wavelength in the range of 190-800 nm and a noise level ±3·10-6 AU. The unit offers high-speed sampling up to 100 Hz and wavelength autocalibration. AC 05 analytical cell is included.
| Pcs | Description | P/N |
|
1 |
ECDA2800 Analytical UV-VIS PDA Detector The detector measures at eight wavelengths simultaneously or performs a full scan with a speed of up to 100 Hz. 3D support in Clarity SW. Noise level ±5 x 10-6 AU. 4 analog outputs. 2 special mathematical channels are available. AD 05 analytical cell is included, or ECD2800 Analytical UV-VIS DETECTOR |
ANW0000X/ADA0000X |
| 1 | ECB2004B Gradient box with degasser | ABA0000X |
| 1 | ECP2010H Analytical HPLC pump | ACF0000X |
| 1 | ECO2080L Column oven with heating and cooling | AOA00004 |
| 1 | Autosampler AS96 for 2x48 vial, with/without cooling and heating module, 60 Mpa | ASA96000/ASA96010 |
| 1 | Clarity – Station for 1 instrument | AP000C50 |
| 1 | Clarity module for HPLC control | AP000A24 |
| 1 | Clarity SW module for AS control | AP000A26 |
| 1 | Module for PDA data Clarity (SW) | AP000A29 |
| 1 | Accessories for analyt. system series 2000 | ASA00180 |
| 1 | Accessories for AS96 | ASA96180 |
| Filename | Type |
|---|---|
| Info-Piston_Seal_Materials-en | pdf (134,34 KB) |
