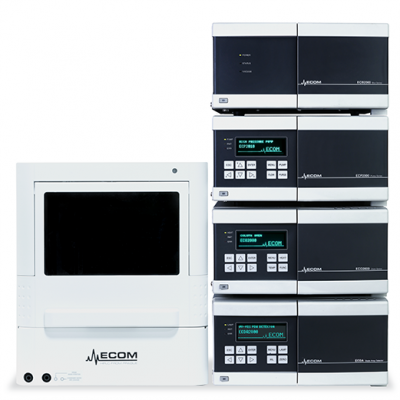

ECS06 Gradient Analytical System

8 channel Scanning 200-800 10ml/min 40MPa New Product
Highly effective HPLC system with a UV-VIS / UV-VIS PDA detector, a column oven, an analytical pump, a gradient box, and an autosampler with/without cooling and heating, 40 MPa (5801 psi)
Availability
Categories
Manufacturer
ECOM spol. s r.o.
Choose variant:
Image PN Product Name Maximum pressure Detector Request quote
ECS06 Gradient Analytical System,With heating and cooling ASA06C0X, UV-VIS PDA
PN
ASA06C0X
Product Name
Gradient analytical system (autosampler with cooling and heating, UV-VIS PDA)
Maximum pressure
40 MPa (5801 psi)
Detector
UV-VIS PDA
Actions
ECS06 Gradient Analytical System,Without heating and cooling ASA0600X, UV-VIS PDA
PN
ASA0600X
Product Name
Gradient analytical system (autosampler without cooling and heating, UV-VIS PDA)
Maximum pressure
40 MPa (5801 psi)
Detector
UV-VIS PDA
Actions
ECS06 Gradient Analytical System, With heating and cooling, UV-VIS
PN
ASA06XXX
Product Name
Gradient analytical system (autosampler with cooling and heating, UV-VIS)
Maximum pressure
40 MPa (5801 psi)
Detector
UV-VIS
Actions
ECS06 Gradient Analytical System, Without heating and cooling, UV-VIS
PN
ASA06XXX
Product Name
Gradient analytical system (autosampler without cooling and heating, UV-VIS)
Maximum pressure
40 MPa (5801 psi)
Detector
UV-VIS
Actions

The UV-VIS PDA detector has eight channels in the range of 200-800 nm and a very low noise level, and it also offers high-speed scanning up to 100 Hz. A UV-VIS detector is also an option. The units are communicated through RS232 or Ethernet (LAN)

An additional PC A/D converter card is not required for this system. The system contains an autosampler and Clarity software. All units are supported in Clarity software from installation.

A wireless mouse and keyboard set (P/N: EPC-0028), a PC (P/N: EPC-0026), and a computer monitor (P/N: EPC-0027) can be purchased with the system.



Main parts

ECDA2800 UV-VIS PDA DETECTOR
Analytical Diode Array Detector measures at eight wavelengths simultaneously or performs a full scan with a speed of up to 100 Hz. 3D support in Clarity SW. Noise level ±5 x 10-6 AU. Four analog outputs. Two special mathematical channels are available. AD 05 analytical cell is included.

or

ECD2800 Analytical UV-VIS DETECTOR
Detector with a continuously variable wavelength in the range of 190-800 nm and a noise level ±3·10-6 AU. The unit offers high-speed sampling up to 100 Hz and wavelength autocalibration. AC 05 analytical cell is included.

ECO2080L COLUMN OVEN WITH HEATING AND COOLING
This column oven allows precise temperature stabilization in the range of 0-80°C. A big compartment room can accommodate up to 3 columns with lengths up to 30 cm. Peltier technology offers the possibility of heating and cooling independently from room temperature.

ECP2010 ANALYTICAL HPLC PUMP
This isocratic pump works with Gradient Box ECB2004B as a quaternary gradient pump. The flow rate range is 0.001-10.00 ml/min and the pressure limit is 40 MPa. Unit software includes a new learning algorithm for pulsation suppression and many testing and diagnostic functions.

ECB2004B GRADIENT BOX WITH DEGASSER
The box is suited for handling liquids in ECOM gradient systems. It accommodates a container for solvent bottles, a built-in high-efficiency vacuum degasser, and a four-way gradient valve. Up to four solvent lines may be degassed simultaneously by one unit. A four-way gradient valve is controlled from the pump ECP2010.

AUTOSAMPLER AS96
A reliable and precise autosampler for a wide range of applications in HPLC and LC-MS in variants with or without a cooling and heating module. State-of-the-art injection technology with fast injection and wash cycles. For 2x48 vials, max. pressure 40 MPa (5801 psi)

CLARITY CHROMATOGRAPHY SOFTWARE
This system is fully controlled by Clarity Chromatography software, which is also a part of delivery. Clarity SW contains tools to meet FDA 21 CFR Part 11
requirements, ensuring its suitability for use in regulated environments.


SYSTEM CONTAINS

Pcs Description P/N
1

ECDA2800 Analytical UV-VIS PDA Detector The detector measures at eight wavelengths simultaneously or performs a full scan with a speed of up to 100 Hz. 3D support in Clarity SW. Noise level ±5 x 10-6 AU. 4 analog outputs. 2 special mathematical channels are available. AD 05 analytical cell is included,

or

ECD2800 Analytical UV-VIS DETECTOR
Detector with a continuously variable wavelength in the range of 190-800 nm and a noise level ±3·10-6 AU. The unit offers high-speed sampling up to 100 Hz and wavelength autocalibration. AC 05 analytical cell is included.

ANW0000X/ADA0000X
1 ECB2004B Gradient box with degasser ABA0000X
1 ECP2010 Analytical HPLC pump ACA0000X
1 ECO2080L Column oven with heating and cooling AOA00004
1 Autosampler AS96 for 2x48 vials, 40 MPa, with or without heating and cooling module ASA97000/ASA97010
1 Clarity – Station for 1 instrument AP000C50
1 Clarity module for HPLC control AP000A24
1 Clarity SW module for AS control AP000A26
1 Module for PDA data Clarity (SW) AP000A29
1 Accessories for analyt. system series 2000 ASA00180
1 Accessories for autosampler  ASA96180
Note: A column and a computer are not included. PC system has to be equipped for handling 3 serial RS232 or 1 Ethernet port at least. Please, also check Clarity software requirements.
