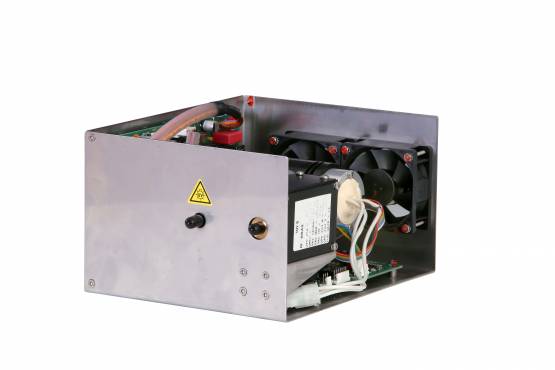

TOY20DAD 800 EX Two Channel UV Detector
Two Channel version measures at two wavelengths simultaneously with possibility to see current scan.
- Description
- Parameters
- Files to download 1
More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.
The unit is supplied with AMY17 PCB board. It powers the lamps and control the unit. It has lot of new function including sampling higher speed.
When using the fiber-optic cables we supply, we recommend to use 1 m fiber-optic cables.
For 3 m and 5 m fiber-optic cables, we recommend consultation according to the application.
Most important features of TOYDAD EX units:
- small dimensions
- built-in lamp working hours counter
- cell connection using optical cables
- measuring at more wavelengths simultaneously
- sophisticated diagnostic software
| Number of channels (Signals) | 2 |
|---|---|
| Scan | 190-800 nm, informative |
| Number of CCD elements | 256 |
| Communication | RS232 |
| Accuracy of adjustment | ± 1 nm /±0.5 nm |
| Typical spectral half-width | 10 nm |
| Drift (Test cell, 254nm) | 2 x 10-3 AU/hr |
| Time constant | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
| Power supply | 24 -36 V DC |
| Power input | 48 W |
| Materials in contact with mobile phase | depends on the selected cell |
| Optical cables | yes |
| Dimensions W x H x D | 164 x 112 x 197 mm (6.46 x 4.41 x 7.76 in) |
| Weight | 2,0 kg (4.4 lb) |
| Filename | Type |
|---|---|
| Info-TOY20DAD800_EX_detector-en-02.pdf | pdf (170,91 KB) |
Accessories
Deuterium lamp for TOYDAD-L + TOY14 + TOY18
For detectors TOYDAD-L + TOY 14 + T0Y 18
Halogen lamp with cable and connector
For Flash DAD and TOYDAD detectors up to 800nm and for detectors ECD2800 and ECDA2800.
