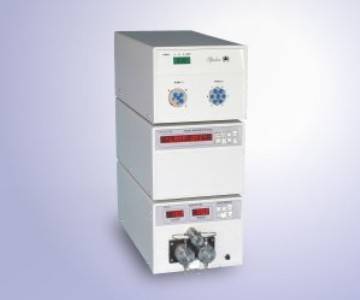

Automatic Isocratic Preparative System with SPIDER unit
For preparative and flash applications at two wavelength with automatically sampling and fractions collecting
- Description
This system is suited for preparative and flash chromatographyby constant flow rate of mobile phase (0.1 - 100 ml/min). Sample injecting is provided automatically using three-way valve on the input of system. The fractions are collected by means of six-way valve on the system output. These valves are located in the SPIDER MIXING UNIT as follow:
Chromatographic software ECOMAC controls the system and collects data. For fractions collecting are possibilities as follow:
- control by means of time table
- control based on peak detection at chosen signal
Whichever ECOM UV detector can be used in the system (Sapphire, Topaz, Opal or Flash 06 DAD).
Computer is not include but can be delivered separately.
System contains
| Pcs | Description | P/N |
| 1 | ALPHA 100 Isocratic Pump | PH000000 |
| 1 | TOPAZ Dual UV Detector | 73E000000 |
| 1 | SPIDER mixing unit | VS000000 |
| 1 | Box for Bottles MF1 | ZA000000 |
| 1 | Mobil phase reservoir LCT 02, 1L | 56940000 |
| 1 | SS Mobile Phase Filter 25um, 1/8" Pipe OD | JR-3678-25 |
| 1 | PEEK Union 1/8" (1/4"-28) without Fittings | JR065 |
| 2 | PEEK Nut 1/8", 1/4"-28 threads | 00000450 |
| 2 | KEL-F Ferrule 1/8" | 00000470 |
| 1 | ECOMAC Chromatographic softvare | AF000000 |
| 2 | Crossed serial cable 9pin RS 232 | EKAB-024 |
| 2 | Cable with converter RS232 - USB | EKAB-025 |
| 1 | Panda 30 Start + Mark - USB | SA020000 |
| 1 | Accessories for preparative system | SE020100 |
