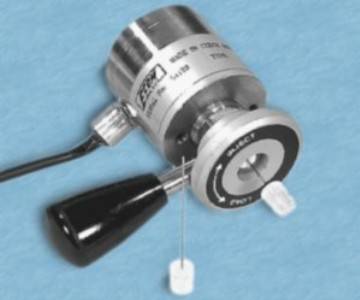

Analytical Injection Loop Valve D UNI
Inject valve with starting contact (Cinch/Molex) for using with external loop
- Description
- Parameters
Valve D is used for sampling up to 35 MPa in HPLC.
Volume of injected sample is given by external loop (3 ul to 1 ml) fastened to the backside of the valve. The loop should be filled using a Hamilton syringe with a needle for HPLC, or a LUER syringe with a needle supplied as an accessory.
Injection valve type D has a switch, which makes possible to start an integrator (ECOMAC) eventually detector or pump software, simultaneously with switching the valve to the INJECT position.
Starting cable is equipped by Cinch connector (pic.1). For connecting valve to device with Molex connector is supplied reduction between Cinch and Molex connector (pic.2) as an accessory.
Capillaries (1/16") can be fastened by standard HPLC nuts for all types of vavles.
Outlets:
Accessories:
| Qty | Name |
| 4 | SS Nut 1/16", 10-32 threads |
| 4 | SS Ferrule 1/16" |
| 2 | Nut OC M 4 x 6 |
| 1 | Luer Hub Needle KF 722 (22/51/3) |
| 2 | Outlet capillary SS 1/16"x0.5mm, l=50mm |
| 1m | PTFE Tubing OD 2.1mm x ID 1.5mm |
| 1 | Adapter Cinch/Molex |
| 1 | Hexagon socket screw key SS 2mm |
| 1 | External sample loop 20 ul SS |
| 1 | User’s guide |
| Inside hole diameter | d=0,5mm |
|---|---|
| Material stainless | stainless steel, Vespel |
| Capillary Connection | UNF 10-32 standard thread |
| Needle dimensions | OD = 0.71 mm length = 50.8 mm (2“) |
| Control | manual |
| Maximum operating pressure | 35 MPa |
| Dimensions W x H x D | d=41mm/72mm |
