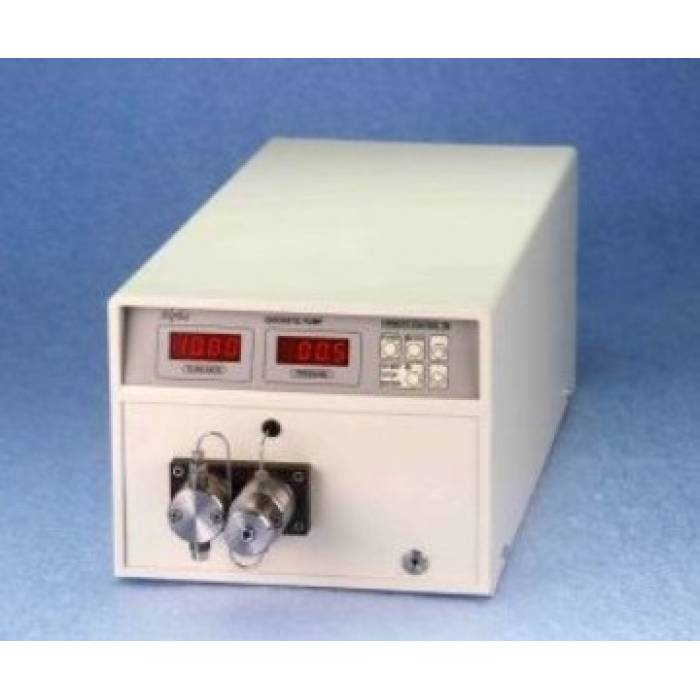

ALPHA 10 Plus Isocratic Pump
0.01 - 10 ml/min - pistons connected in series
- Description
- Parameters
With flow rate 0.01 – 10 ml/min and limit of pressure 40 MPa is this pump suited for analytical applications in liquid chromatography. It is designed with main and auxiliary pump heads connected in series with piston diameter of 1/8”.
There are new improvements in piston suspension which has new plastic slide bearing and exchange is now easier. Bypass valve has been improved also and is now easier to operate it.
Intuitive operating using simple keypad allow easy chose functions as follow:
- flow rate
- maximal flow rate- PURGE ( for priming and washing)
- low pressure limit
- high pressure limit
- pulsation compensation on-off
- pressure unit (PSI, MPa or bar)
- control mode ( by keypad, RS232 or using voltage)
- display brightness
Two LED displays allows to watch (also from a distance) adjusted flow rate and operating pressure. By pump function choosing, give you this displays enough of information for adjusting.
There is possibility to use this pump by high pressure gradient mode, where are two, tree or four unit controlled from PC using RS232 or voltage.
By work with buffered solvents is possible to use pistons back washing.
| Flow rate | 0.01 - 10 ml/min in 0.01 steps |
|---|---|
| Maximum operating pressure | 40 MPa |
| Adjustable lower pressure limit | 0 - 39.9 MPa |
| Adjustable upper pressure limit | 0.1 - 40 MPa |
| Repeatability of flow rate adjusting | ± 1% |
| Accuracy of flow rate setting | ± 2% |
| Wetted materials | Stainless steel, PEEK, PTFE, ceramic |
| Power supply | 100, 115, 230 V ± 10%, 50, 60 Hz |
| Power input | 30 VA |
| Dimensions W x H x D | 220 x 170 x 450 mm |
| Weight | 8.5 kg |
| Precision of pressure measurement | ± 2% |
