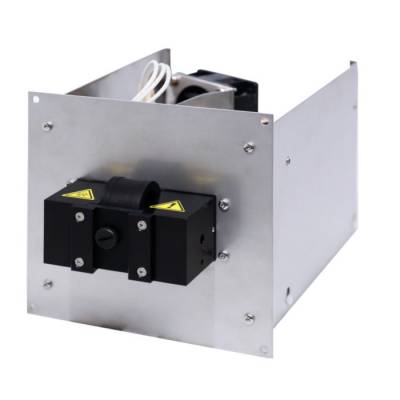

TOY18FIX U Dual UV Detector
Dual UV detector version measure at two fix wavelengths which are adjusted in production according to customer order in range of 200 – 600 nm.
Related variants
- Description
- Parameters
- Files to download 1
The unit is supplied with AMY17 PCB board. It powers the lamps and control the unit. It has lot of new function including sampling higher speed.
Most important features of TOY18FIX detectors:
•small dimensions
•built-in lamp working hours counter
•easy replacement of flow cell
•sophisticated diagnostic software
| Number of channels (Signals) | Two fix wavelengths in range of 200 – 600nm |
|---|---|
| Number of CCD elements | 256 |
| Communication | RS232 |
| Accuracy of adjustment | ± 1 nm |
| Typical spectral half-width | 10 nm |
| Reproducibility | ±0.5 nm |
| Light source | Deuterium lamp |
| Noise (Test cell, 254nm, TC 2s, 10 Hz) | ± 5 x 10-5 AU |
| Drift (Test cell, 254nm) | 1 x 10-3 AU/h |
| Time constant | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
| Wetted materials | FEP; fused silica, stainless steel, PEEK |
| Communication | RS232; optionally USB and LAN |
| Power supply | 24 -36 V DC |
| Power input | 48 W |
| Optical cables | no |
| Dimensions W x H x D | 220 x 120 x 110 mm (8.67 x 4.72 x 4.33 in) |
| Weight | 1.90 kg (4.19 lb) |
| Filename | Type |
|---|---|
| Info-TOY18FIX_U_detector-en-00.pdf | pdf (156,32 KB) |
