TOY18FIX I Single UV DETECTOR
Single UV detector version measure at one fix wavelength which is adjusted in production according to customer order in range of 200 – 600 nm.
- Description
- Parameters
- Files to download 1

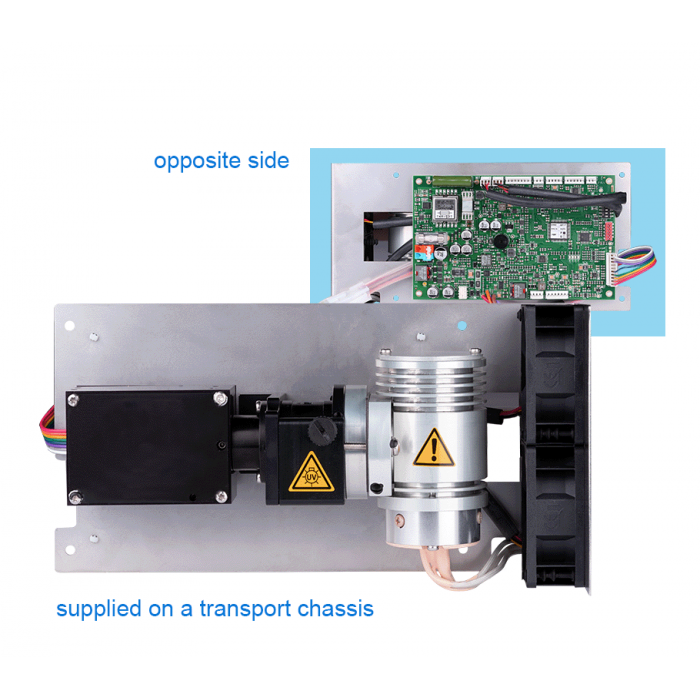

The unit is supplied with AMY17 PCB board. It powers the lamps and control the unit. It has lot of new function including sampling higher speed.
Most important features of TOY18FIX detectors:
•small dimensions
•built-in lamp working hours counter
•easy replacement of flow cell
•sophisticated diagnostic software
| Number of channels (Signals) | One fix wavelength in range of 200 – 600nm |
|---|---|
| Number of CCD elements | 256 |
| Communication | RS232 |
| Accuracy of adjustment | ± 1 nm |
| Typical spectral half-width | 8 nm |
| Reproducibility | ±0.5 nm |
| Light source | Deuterium lamp |
| Noise (Test cell, 254nm, TC 2s, 10 Hz) | ± 5 x 10-5 AU |
| Drift (Test cell, 254nm) | 1 x 10-3 AU/h |
| Time constant | 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s |
| Wetted materials | FEP; fused silica, stainless steel |
| Maximal flow rate | 500 or 3 000 ml/min depending on the cell |
| Communication | RS232; optionally USB and LAN |
| Power supply | 24 -36 V DC |
| Power input | 48 W |
| Optical cables | no |
| Dimensions W x H x D | 131 x 167 x 386 mm (5.15 x 6.57 x 15.20 in) |
| Weight | 3.20 kg (7.06 lb) |
| Filename | Type |
|---|---|
| Info-TOY18FIX_I_detector-en-02.pdf | pdf (179,54 KB) |
