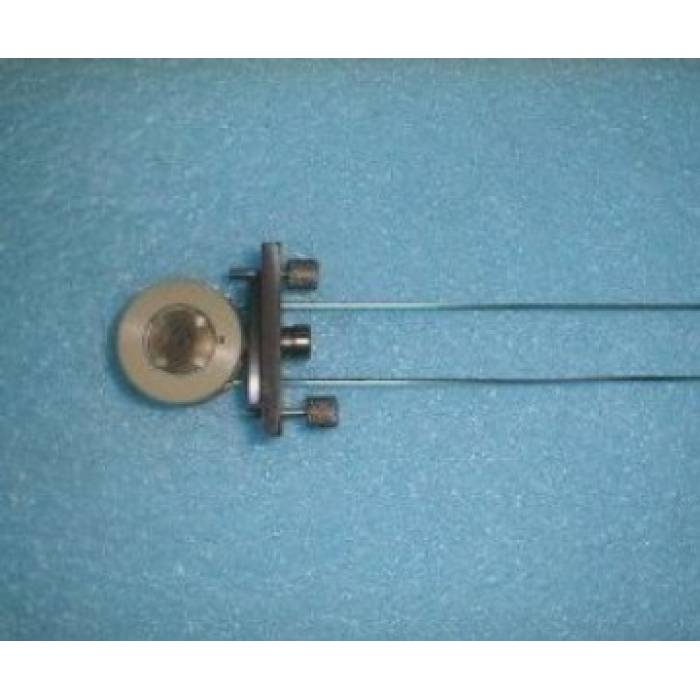

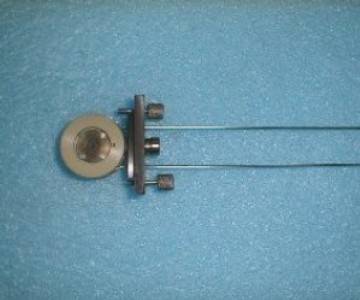

Preparative Cell PLCC 04 SS tubings 1/16"x 1mm
For detectors Sapphire, Opal LED, LCD 2083.2 and LCD 2084.2
- Description
- Parameters
Unique design of cell makes possible to change the length of the optical path according to the particular conditions of the analysis from about 0.3 mm to 2.4 mm. It is designed for preparative or flash applications and it is equipped with inlet capillaries of FEP with O.D.1/16" and I.D.1mm". Internal volume of preparative cell is 40, 55 and 70 ul according to adjusted optical path. Maximum flow rate is 200 ml/min.
| Material | stainless steel, PEEK, fused silica |
|---|---|
| Casing dimensions | Diameter of set up 38 mm; External casing diameter 18 mm |
| Maximal flow rate | 200 ml/min. |
| Optical path 0.3 - 0.4 mm | cell volume ca. 40 µl |
| Optical path 1.3 - 1.4 mm | cell volume ca. 55 µl |
| Optical path 2.3 - 2.4 mm | cell volume ca. 70 µl |
| Inlet inner diameter | 1mm |
| Weight | 70 g |
